Hand-Hydraulic Stacker

Specs-HIGH-CAPACITY CUSHION FORKLIFT

1500/2000/2000kg

LOAD CAPACITY

14.3MPH

TRAVEL SPEED FULL LOAD

4

MODEL TYPES AVAILABLE

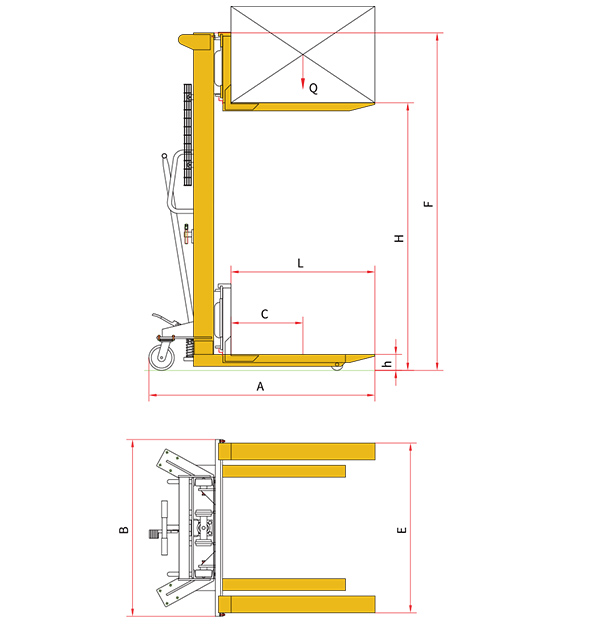

Specifications
Type	CTY-50	CTY-100/150	CTY-200
Load Capacity（kg）	500	1000/1500	2000
Lowest Fork Height（mm）	90	90	90
Total Lift Height(mm)	1550	1550	1550
Load Centre(mm)	400	500	500
Length of the Fork(mm)	820	900	900
Width of the Fork(mm)/E	780	980	980
Overall Length(mm)	1350	1400	1400
Overall Width(mm)	800	1000	1000
Overall Height(mm)	2050	2050	2050
Dia.of the Front Wheel(mm)	Φ70×50	Φ70×50	Φ70×50
Dia.of the Steering Wheel(mm)	Φ150	Φ150	Φ150
Material of the Wheel	Nylon	Nylon	Nylon
Net Weight(kg)	150	200	230

Ningbo Yinzhou Walsun Machinery Factory, as famous China Custom Hand Hydraulic Stackers Manufacturers and China Hand Hydraulic Stackers suppliers, has sufficient production capacity and high control over raw material prices, quality and stable supply, laying the foundation for continuous production; the company has a reasonable sales and warehousing network and efficient operation mechanism to ensure domestic shipments within one week, and foreign trade orders are based on customer needs can be shipped on time.

The company strictly implements the procedures of screening and reviewing raw material suppliers, incoming material testing, and incoming material comparison; excellent production process design and program control make each batch of Hand-Hydraulic Stacker more stable and traceable, and obtain high-efficiency production control; strict In accordance with the supplier's indicators, each batch of Hand-Hydraulic Stacker is inspected and monitored for quality.

Our wholesale Hand Hydraulic Stackers are widely used in various production companies such as hardware machinery, textiles, food, medicine, logistics, and supermarkets, homes, and shopping malls.
