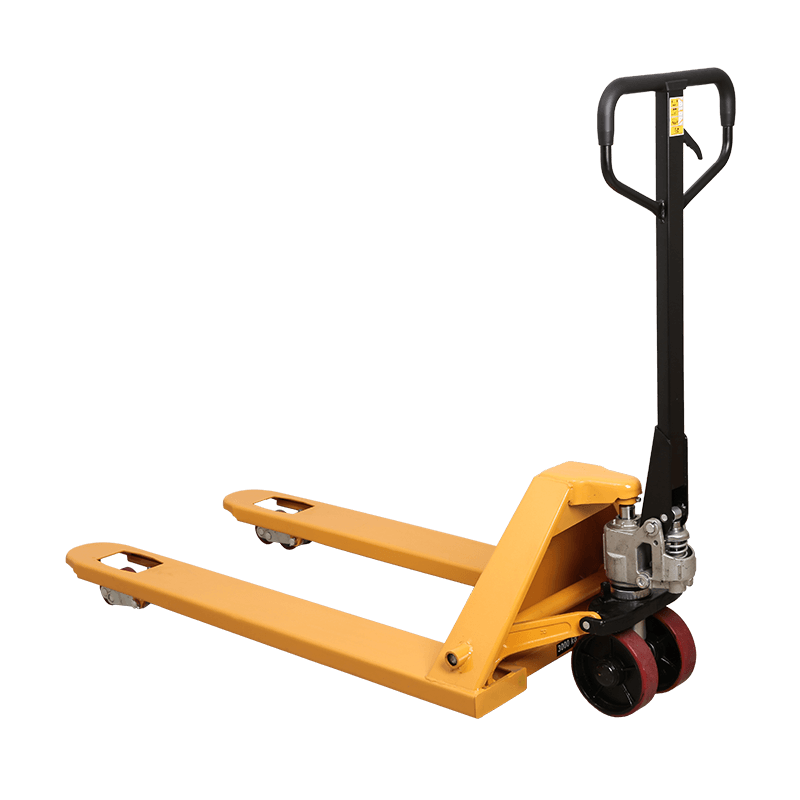

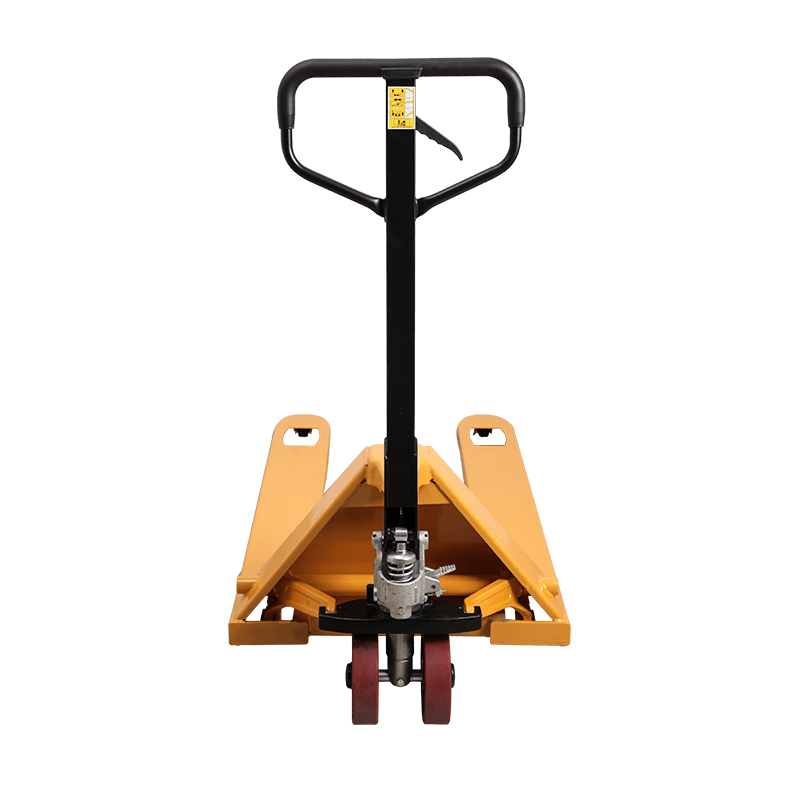

2.5Ton Hand Hydraulic Pallet Jack Truck- Model CBY Series-PU Wheels

2.5Ton Hand Hydraulic Pallet Jack Truck- Model CBY Series-PU Wheels

Hand-Hydraulic Pallet Truck

1500/2000/2500/3000kg

LOAD CAPACITY

540/685mm

Outside Fork Spread

1150/1220

Length of the Fork

Specifications
Model   CBY-BF
Load Capacity kg 1500/2000/2500/3000
Lowest Fork Height mm 85
Maximum Fork Height (H2) mm 200
(Outside Fork Spread(B) mm 540/685
Length of the Fork(L2) mm 1150/1220
Width of the Fork(B1) mm 160x50
Head Length(L1) mm 395
Dia.Of the Front Wheel mm Single Φ80x93/double Φ80x70
Dia.Of the Steering Wheel mm 180x50
Material Of the Wheel   Nylon/Polyurethane/Rubber
Height of handle from the ground(H) mm 1230
Net Weight kg

540Nylon-72kg / 685Nylon-80kg

540PU-80kg/685PU-88kg

Q'ty in one 20'Container   540 180 pcs / 685 144 pcs

Ningbo Yinzhou Walsun Machinery Factory, as famous China 2.5Ton Hand Hydraulic Pallet Jack Truck- Model CBY Series-PU Wheels Suppliers and China OEM 2.5Ton Hand Hydraulic Pallet Jack Truck- Model CBY Series-PU Wheels factory, has sufficient production capacity and high control over raw material prices, quality and stable supply, laying the foundation for continuous production; the company has a reasonable sales and warehousing network and efficient operation mechanism to ensure domestic shipments within one week, and foreign trade orders are based on customer needs can be shipped on time.

The company strictly implements the procedures of screening and reviewing raw material suppliers, incoming material testing, and incoming material comparison; excellent production process design and program control make each batch of 2.5Ton Hand Hydraulic Pallet Jack Truck- Model CBY Series-PU Wheels more stable and traceable, and obtain high-efficiency production control; strict In accordance with the supplier's indicators, each batch of 2.5Ton Hand Hydraulic Pallet Jack Truck- Model CBY Series-PU Wheels is inspected and monitored for quality.

Our 2.5Ton Hand Hydraulic Pallet Jack Truck- Model CBY Series-PU Wheels are widely used in various production companies such as hardware machinery, textiles, food, medicine, logistics, and supermarkets, homes, and shopping malls.
