TRAVEL SPEED FULL LOAD
MODEL TYPES AVAILABLE

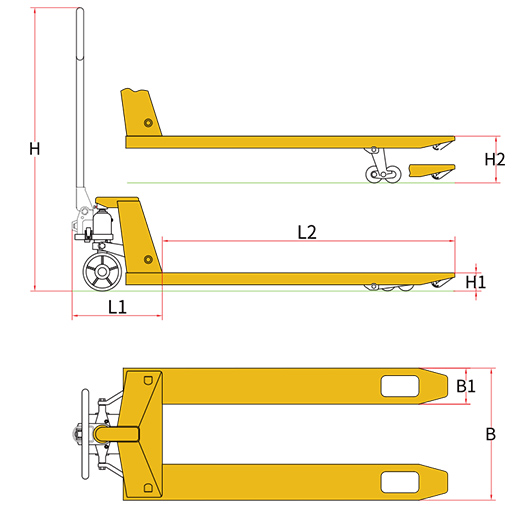

|Lowest Fork Height||mm||75|
|Maximum Fork Height (H2)||mm||190|
|(Outside Fork Spread(B)||mm||520/550/685|
|Length of the Fork(L2)||mm||900/1150/1220|
|Width of the Fork(B1)||mm||152x55|
|Dia.Of the Front Wheel||mm||Single Φ70x80/double Φ70x60|
|Dia.Of the Steering Wheel||mm||160x50|
|Material Of the Wheel||Nylon/Polyurethane/Rubber|
|Height of handle from the ground(H)||mm||1180|
550Nylon-55kg / 685Nylon-59kg
|Q'ty in one 20'Container||550 180 pcs / 685 144 pcs|
|Q'ty in one 20'Container||550 318 pcs / 685 288pcs|
Ningbo Yinzhou Walsun Machinery Factory, as famous China 2/2.5Ton Hand-Hydraulic Pallet Truck - Model DB Series Suppliers and China OEM 2/2.5Ton Hand-Hydraulic Pallet Truck - Model DB Series factory, has sufficient production capacity and high control over raw material prices, quality and stable supply, laying the foundation for continuous production; the company has a reasonable sales and warehousing network and efficient operation mechanism to ensure domestic shipments within one week, and foreign trade orders are based on customer needs can be shipped on time.
The company strictly implements the procedures of screening and reviewing raw material suppliers, incoming material testing, and incoming material comparison; excellent production process design and program control make each batch of 2/2.5Ton Hand-Hydraulic Pallet Truck - Model DB Series more stable and traceable, and obtain high-efficiency production control; strict In accordance with the supplier's indicators, each batch of 2/2.5Ton Hand-Hydraulic Pallet Truck - Model DB Series is inspected and monitored for quality.
Our 2/2.5Ton Hand-Hydraulic Pallet Truck - Model DB Series are widely used in various production companies such as hardware machinery, textiles, food, medicine, logistics, and supermarkets, homes, and shopping malls.
